METALCITI Las Vegas Z Bar French Cleat Hanging Rail 300mm no holes max. 56kg

METALCITI Las Vegas Z Bar French Cleat Hanging Rail 300mm no holes max. 56kg (Qty 1)

The Las Vegas Hanger offers an optimal solution for interior installations requiring a 300mm length of engagement. Constructed from robust aluminium, this hanger ensures durability and longevity in various applications. It provides a 12.8mm projection between the installed item and the wall surface. Furthermore, the 11.2mm lift-off facilitates secure interlocking and straightforward installation. Recognising that each project presents unique requirements, the Las Vegas Hanger offers versatile ways of installation, allowing installers to select the approach best suited to their specific needs. Mating options include clip-to-clip, clip-to-rail, and rail-to-rail configurations, providing flexibility and adaptability to diverse installation scenarios. We recommend careful consideration of project parameters to determine the most effective installation method, ensuring a secure and professional finish.

What’s included

METALCITI Las Vegas Z Bar French Cleat Hanging Rail 300mm no holes max. 56kg (Qty 1)

Technical Drawings

PDF

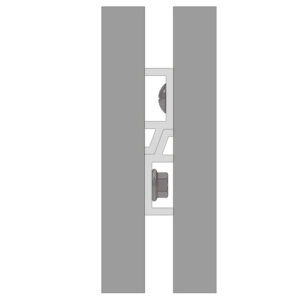

Installation Options

There are three ways of installing a Z Bar System:
– clip on clip
– clip on rail
– rail on rail

Specification

profile: Las Vegas STR050
capacity: 56kg
length: 300mm
height: 38mm
depth: 13mm
interlock: 11mm
material: aluminium
holes: 0

How to use

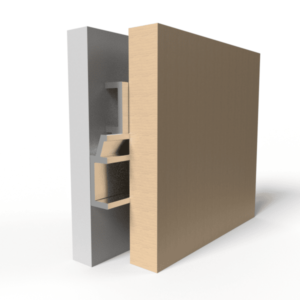

Here are example images how the system can be used. Look above what’s included. You can also view drawings with measurements of the 50mm clip and 300mm-2500mm rail.
