METALCITI Phoenix Z Bar French Cleat Hanging Rail no holes sample (Qty 2)

METALCITI Phoenix Z Bar French Cleat no holes sample (Qty 2)

The Phoenix Z Bar hanging system allows you to hang heavy picture frames, artwork and mirrors. It is also excellent for fixings TVs, cabinets, and cupboards to the wall. METALCITI systems are made from high-quality aluminium, so it’s durable and reliable. It has an innovative Z-shaped design. That helps simplify the installation process. It also offers a secure grip between the rails. Phoenix profile is great for interior installations. In terms of size, it has a 5mm projection (depth) and a 16mm lift-off (interlock).

What’s included

METALCITI Phoenix Z Bar French Cleat no holes sample (Qty 2)

Maximum capacity

Please note this is the maximum weight the clips and rails can take, not the wall or fixings (screws, plugs). In most cases fixings will let go before the clips and rails fail. Therefore when hanging heavy items, please ensure that fixings and the wall itself can support the weight of your item (mirror, picture, artwork etc).

Installation

The Z Bar Hanger is designed for flexible installation, which is why we sell it as a single rail rather than a fixed set. This approach allows you to combine two rails of the same length for a uniform and centred hold, or to use two rails of different lengths to accommodate unusual or custom-sized items. This flexibility ensures you can get a secure and balanced fit for a wide variety of frames, mirrors, or panels, even if they have unique dimensions.

Here’s why you’ll love the Z Bar System

– interlocking Z Bar clips and rails provide a strong grip and eliminate the need of using multiple brackets and adjustments
– mount the wall bar and attach the matching hanger to your object
– no need to hold heavy items while securing them
– Z Bars are suitable for hanging a variety of items, from framed artwork to heavy mirrors and cabinets
– rails disappear behind your object, leaving a clean and professional look
– choose from individual pairs or a wall rail system for hanging multiple items

Technical Drawings

PDF file
DWG file

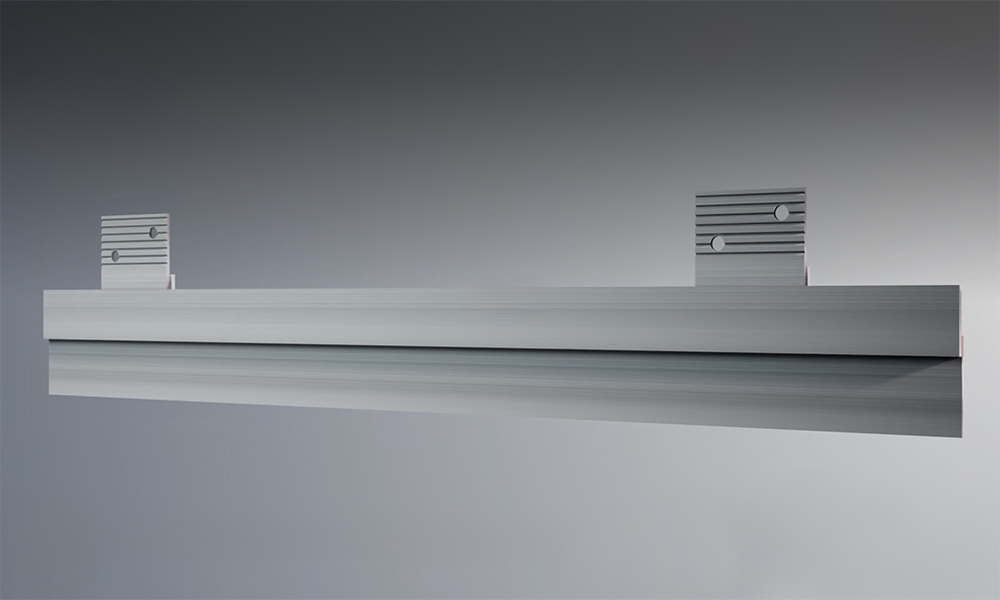

Installation Options

There are three ways for installing Phoenix Z Bar System:
– clip on clip
– clip on rail
– rail on rail

For illustration only

Here are a few examples how the system can be used. Please read in the description section above what’s included.
