METALCITI Phoenix Z Bar French Cleat Hanging Rail 2500mm no holes max. 200kg (Qty 10)

METALCITI Phoenix Z Bar French Cleat Hanging Rail 2500mm no holes max. 200kg (Qty 10)

The Phoenix Z Bar Hanging System is great for hanging picture frames, securing heavy mirrors, or cabinets. It is made from high-quality aluminium alloy. Its innovative Z-shaped design not only simplifies setup but also guarantees a steadfast grip, catering perfectly to mirrors, picture frames, and shelves.

What’s included

METALCITI Phoenix Z Bar French Cleat Hanging Rail 2500mm no holes max. 200kg (Qty 10)

Installation

The Z Bar Hanger is designed for flexible installation, which is why we sell it as a single rail rather than a fixed set. This approach allows you to combine two rails of the same length for a uniform and centred hold, or to use two rails of different lengths to accommodate unusual or custom-sized items. This flexibility ensures you can get a secure and balanced fit for a wide variety of frames, mirrors, or panels, even if they have unique dimensions.

Here’s why you’ll love the Z Bar System

– interlocking Z Bar clips and rails provide a strong grip and eliminate the need of using multiple brackets and adjustments
– mount the wall bar and attach the matching hanger to your object
– no need to hold heavy items while securing them
– Z Bars are suitable for hanging a variety of items, from framed artwork to heavy mirrors and cabinets
– rails disappear behind your object, leaving a clean and professional look
– choose from individual pairs or a wall rail system for hanging multiple items

Technical Drawings

PDF file
DWG file

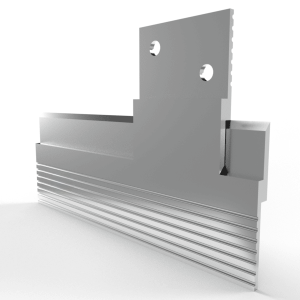

Installation Options

There are three ways for installing Phoenix Z Bar System:
– clip on clip
– clip on rail
– rail on rail

Specification

profile: Phoenix MF625
length: 2500mm
height: 47mm
depth: 5mm
interlock: 16mm
material: aluminium
holes: 0

Product Manual

metalciti-z-bar-hanger-instructions

How to use

Here are example images how the system can be used. Look above what’s included.
