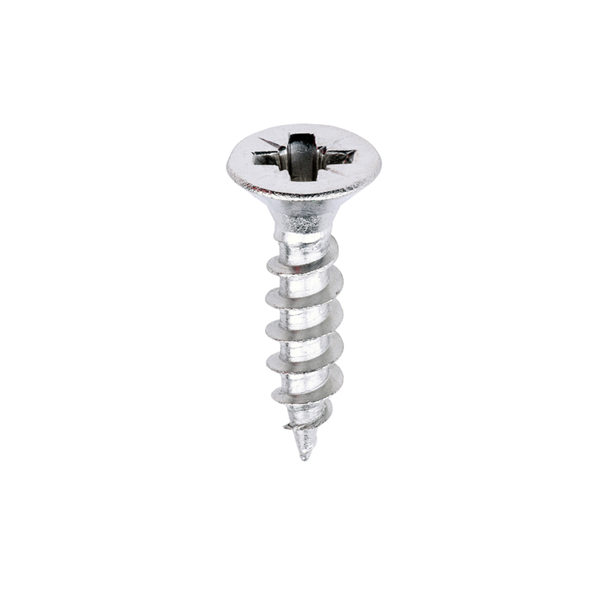

Multi-Purpose Screw 3.5mm 16mm pz2 double countersunk stainless steel (Qty 1000)
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
What’s included

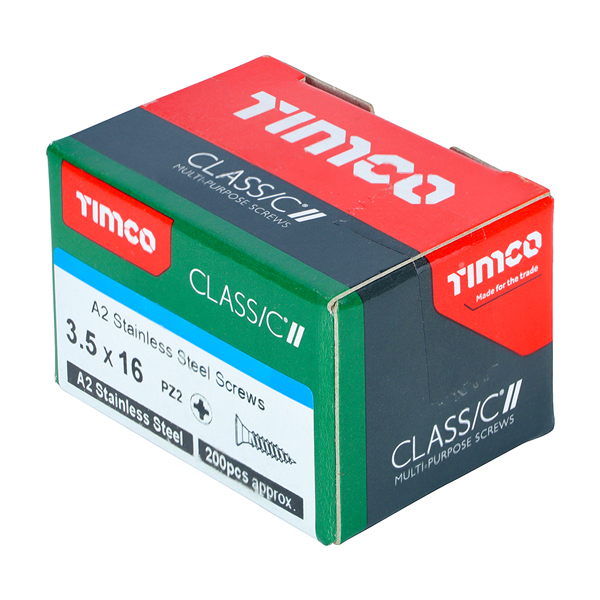

TIMCO Multi-Purpose Screw 3.5mm 16mm pz2 double countersunk stainless steel (Qty 1000)
Screw size
Please use this measuring ruler and quick guide to help you choose the correct size screw for your needs.
Screw Size Chart
Pozidriv head
PZ screw head has a cross-cut screwdriver blade. The tip has parallel edges and a cross recess.
– PZ1 2.0mm, 2.5mm, 3.0mm
– PZ2 3.5mm, 4.0mm, 4.5mm, 5.0mm
– PZ3 5.5mm, 6.0mm, 7.0mm, 8.0mm
Specification
Driver Bit Size – PZ2
Material – Stainless Steel
Thread Ø (mm) – 3.5
Head Type – Double Countersunk
Corrosion Rating (1-5) – (4) Urban & industrial areas with a moderate salt atmosphere
Inner Thread Ø d1 (mm) – 2.25
Finish – Steel
Substrates – Softwood, Chipboard, MDF, Masonry (with plug)
Pack Qty – 200
Recess Type – Pozi
Thread – Full
