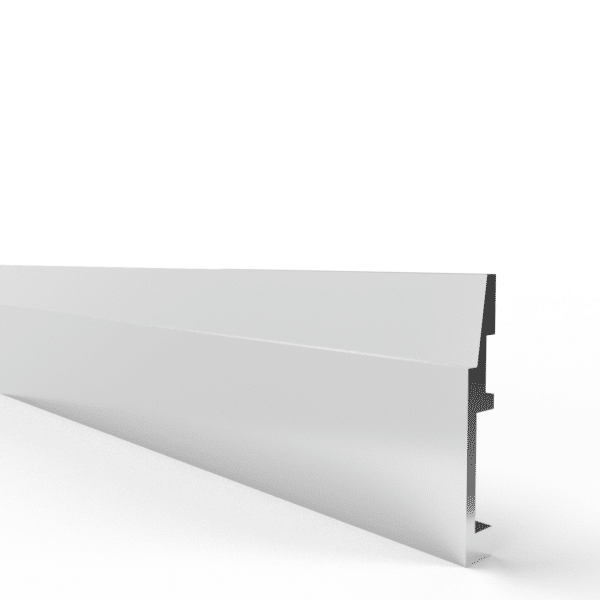

METALCITI Anaheim Z Bar French Cleat Hanging Rail 600mm no holes max. 78kg

METALCITI Anaheim Z Bar French Cleat Hanging Rail 600mm no holes max. 78kg

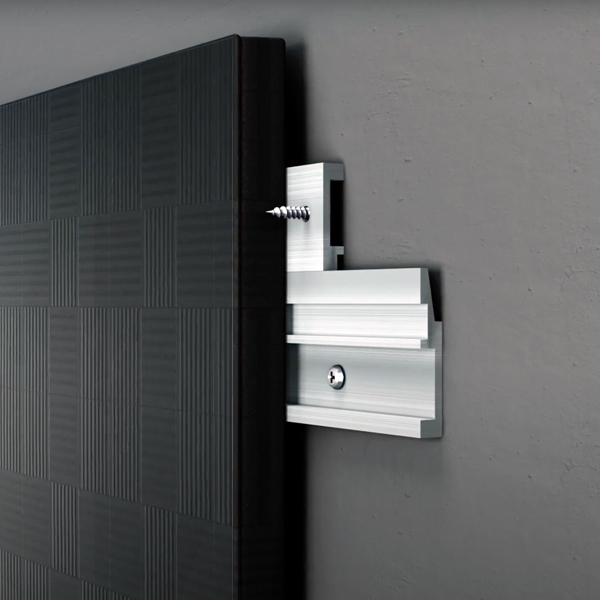

The Anaheim Z Bar is a straightforward, heavy-duty French cleat system designed to handle the stuff standard wall hooks can’t—like massive mirrors, oversized frames, and heavy shelving. The design is simple: you screw one aluminium rail to the wall (making sure it’s level) and the interlocking rail to the back of your item. When you lift the item up and slide the two pieces together, they lock into place. Because the weight is distributed evenly across the entire length of the bar rather than a single point, it isn’t going anywhere. An added bonus to this setup is that it keeps the mounting hardware completely hidden. Your items sit flush against the wall with a clean, professional finish, making it ideal for anything from a gallery-style art display to secure floating shelves.

What’s included

METALCITI Anaheim Z Bar French Cleat Hanging Rail 600mm no holes max. 78kg (Qty 1)

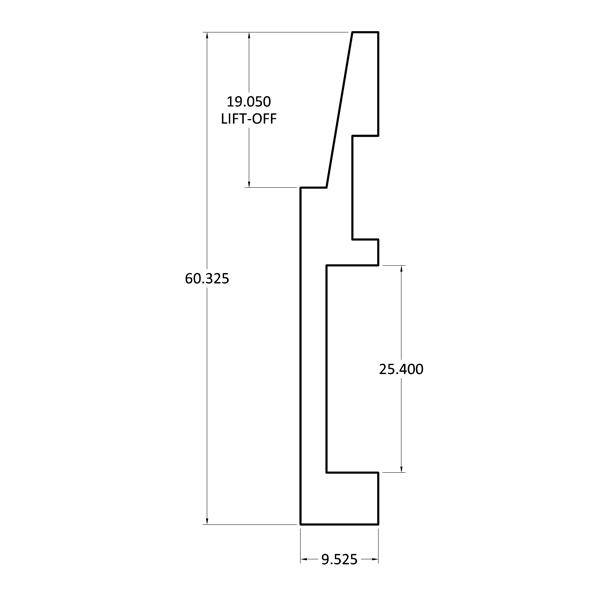

Specification

profile: Anaheim
profile: STR037
capacity: 78kg
length: 600mmm
height: 60mm
depth: 9.5mm
interlock: 19.1mm
material: aluminium
holes: none
qty: 1 rail

Illustration

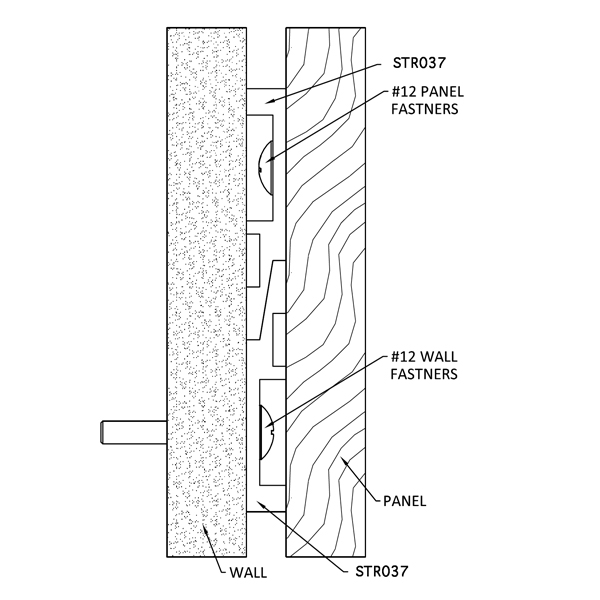

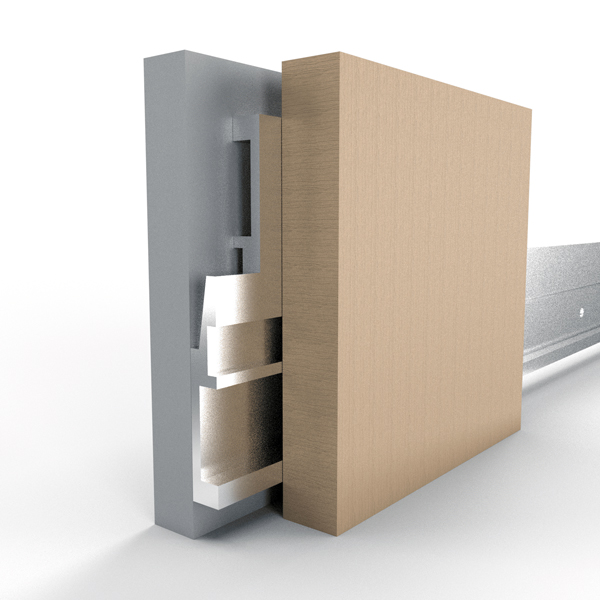

Here is an example how the system works. Only the item stated above is included.
