METALCITI Boston Z Bar French Cleat Hanging Set 50mm adhesive double with 3M VHB tape max. 5kg (Qty 2)

METALCITI Boston Z Bar French Cleat Hanging Set
50mm adhesive double with 3M VHB tape max. 5kg (Qty 2)

The Boston Adhesive Hanger is the perfect solution for installing glass, ACM or phenolic panels for glass, where panel doesn’t allow for attachment with a screw. It’s great for interior installations with only 12mm clearance above the panel. It is made of aluminium and features a stock clip size length of 50mm as well with 3M adhesive tape. This Clip also provides 8mm projection and 10mm lift off.

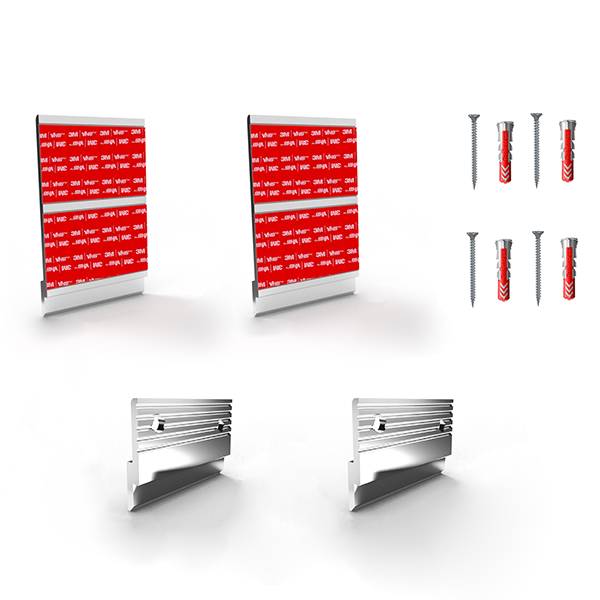

What’s included

METALCITI Boston Z Bar French Cleat Hanging Rail 50mm adhesive double with 3M VHB tape max. 5kg (Qty 2)
METALCITI Boston Z Bar French Cleat Hanging Rail 50mm 2 holes max. 25kg (Qty 2)
Installation Screw 3.5mm 40mm steel (Qty 4)
FISCHER DuoPower Wall Plug 6mm 30mm (Qty 4)

Installation

This set consists of two Boston double stack 50mm rails with 3M tape for the item, and two Boston 50mm rails with two holes (plus screws and plugs) for the wall. 3M tapes take up to 24 hours to set and gain their full strength.

Features

– 1/2 inch clearance required between the top of the panel and the ceiling
– 6063-T6 aluminium
– Two strips of 3M VHB Tape pre-applied for peel and stick application
– Easily used for mounting phenolic, ACM, aluminium, and back painted glass panels
– can also be used with unpainted glass panels by substituting a primer and a tape variation (please inquire for pricing)
– Clips are rated for 10kg of shear strength using a 5x safety factor
– Suitable for interior applications
– Pairs with Boston Z Bar System (Boston Clip and Strip)
