ARTITEQ Info Rail 100cm jet black

AARTITEQ Info Rail 100cm jet black

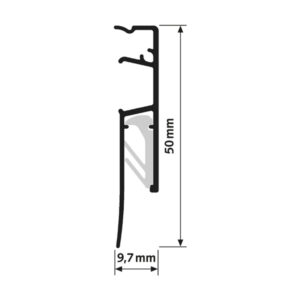

The ARTITEQ Info Rail Display System provides a practical and non-damaging solution for displaying documents, artwork, and notices on walls. Its core functionality relies on an extruded aluminium rail incorporating a triple rubber clamping mechanism. This design securely holds paper ranging from standard 80gsm to cardboard up to 2mm thick without adhesives, preventing wall damage. The system is easily expandable by connecting multiple rails and can be customised to specific lengths by cutting.

How to install

– Determine the desired location for the Info Rail on the wall.
– Position the provided installation clips against the wall at appropriate intervals, ensuring they are level.
– Mark the screw positions through the pre-drilled holes in the clips. The number of clips required will depend on the length of the rail.
– Using a drill bit suitable for your wall type, drill pilot holes at the marked locations. The depth of the pilot holes should correspond to the length of the provided screws.
– Align the installation clips with the pilot holes and fasten them to the wall using the provided screws. Ensure the clips are firmly attached and level.

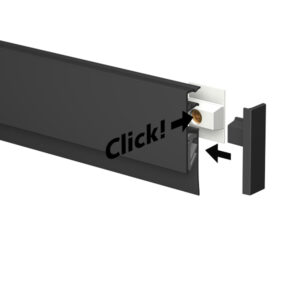

– Once the installation clips are securely mounted, align the back of the Info Rail with the clips. The rail is designed to “click” or snap firmly into place onto the protruding tabs of the installation clips. Apply gentle pressure along the length of the rail to ensure it is fully engaged with all the clips.
– The provided end caps can be fitted onto the open ends of the rail for a neat and finished appearance. Push the end caps into the channels at each end of the rail.

How to use

To display an item, push the top edge of the paper or card into the open channel of the Info Rail. The internal triple rubber clamping mechanism will grip the material securely. To remove or reposition the item, gently pull it downwards and outwards from the rail.

Optional Accessories

The system also supports optional accessories such as name clips and clip hangers. Name clips can be slid into the designated groove on the front of the rail, allowing for labelling or personalised messages. Clip hangers feature a small hook that can be inserted into the rail’s channel, providing a hanging point for lightweight items like key rings or lanyards. These accessories enhance the versatility of the Info Rail for organisation and personalised display.

What’s included

ARTITEQ Info Rail 100cm jet black (Qty 1)
End Cap black (Qty 2)
Installation Bracket (Qty 3)
Screw 3.5mm 45mm (Qty 3)
Wall Plug 5mm (Qty 3)
