ARTITEQ Click Rail PRO Art Hanging Set 200cm max. 50kg/m

ARTITEQ Click Rail PRO Art Hanging Set 200cm max. 50kg/m

The Click Rail PRO Set is a heavy-duty picture hanging system designed for use with a variety of hooks and wires. Its core functionality lies in its straightforward installation: the rail is mounted to the wall with small clips that are screwed into place, after which the rail simply “clicks” over them. This design provides a clean, professional finish with no visible screws. Once installed, the system allows you to effortlessly add or remove hanging wires anywhere along the rail, offering complete flexibility in the placement of artwork without drilling additional holes in the wall. This adaptability makes it a practical solution for both home and gallery settings.

What’s included

ARTITEQ Click Rail PRO 200cm max. 50kg/m (Qty 1)
ARTITEQ Click Rail PRO End Cap (Qty 2)
ARTITEQ Click Rail PRO Installation Bracket (Qty 6)
Installation Screw 3.5mm 40mm (Qty 6)
FISCHER DuoPower Wall Plug 6mm 30mm (Qty 6)
ARTITEQ Hexagon Hanging Wire 2mm perlon max. 20kg (Qty 3)
ARTITEQ Mini Hook max. 4kg (Qty 3) OR ARTITEQ Heavy Brass Hook max. 7kg (Qty 3)

The PRO

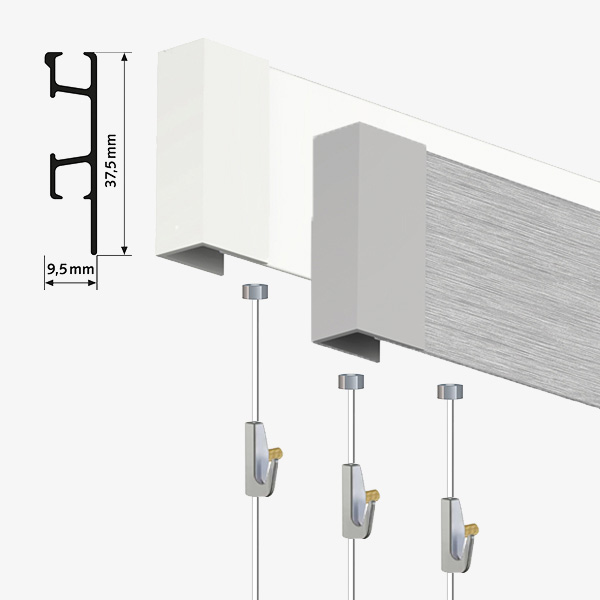

ARTITEQ Click Rail PRO Art Hanging Set is available in a two-meter length. ARTITEQ rails are made from durable aluminium and can be cut to size with a hacksaw. End caps protect rail ends. End caps have a small gap in them for connecting wires. It means you can install the rail snugly, wall-to-wall if needed. Please ensure you leave 6mm on each side for the end caps when cutting.

White and grey finishes

ARTITEQ Click Rail PRO Art Hanging Set is available in two finishes: pure white and brushed grey. The rail can be cut to size with a metal saw (~2 minutes per rail). The Click Rail PRO supports up to 50kg per meter. If you fit rails side by side, install one bracket behind where the two rails join. This will align nicely with them on your wall. Other brackets should be fitted every ~40 cm (8 in). The installation involves drilling three holes per rail meter (6mm drill). No other DIY is required after that.

The white version happily accepts most types of paint so that you can match its colour with your walls. You can also fit it as-is. If you have any questions or need more information about this picture hanging system, please don’t hesitate to contact us.

Corner connector

If you intend to install the Click Rail PRO around corners, you will need to add Corner Connectors (not included in the set) to your order. They work as an inside and an outside connector. It is hardly visible when used as an inside connector as it is placed behind the rails. This connector allows you to slide wires around corners without disconnecting them. Available in white, black and grey.

Hanging wires

ARTITEQ Hexagon Hanging Wires are made of perlon. But what is perlon? Perlon is another name for a type of nylon called Nylon 6. Most military watch bands are made of nylon, but Nylon 6 differs slightly from other forms of nylon. Ordinary nylon is made by condensing materials into solid fibres, which are then woven to form the finished fabric. Nylon 6 is made by linking monomers into a tight chain, resulting in higher-tensile-strength fibres. This is a fancy way of saying that it takes more force to rip a piece of Nylon 6 apart than to tear other types of nylon.

Picture hooks

The Mini Hook is an excellent solution for hanging light frames, canvas and even panels with a picture hanging system. It’s fun and quick to use. It’s made of steel, which makes it super durable. Below are images of the ARTITEQ Mini Hook and its hanging applications.

The Heavy Brass Hook is an excellent option for hanging light picture frames and art pieces. This hook is 9mm wide without a screw, and 20mm wide with a screw in place. It has an opening between 5mm and 8mm wide inside the hook (maximum hanger thickness). ARTITEQ Heavy Brass Hook is a screw-locking hook suitable only for 2mm wires. The hook is made of aluminium. The name comes from the screw, which is made of brass.
