ARTITEQ Contour Rail with Installation Kit 20 kg/m (44 lbs/m)

The ARTITEQ Contour Rail proves that less is more. Measuring an ultra-compact 12.5 mm × 12.5 mm, this micro-profile picture hanging track offers an exceptionally sleek, low-profile solution that integrates seamlessly into modern homes, offices, and gallery spaces. Despite its subtle, minimalist dimensions, the extruded aluminium profile provides reliable load-bearing support for displays weighing up to 20 kg per metre—allowing you to add, adjust, and rearrange framed artwork in seconds with zero wall damage.

Why Choose the ARTITEQ Contour Rail?

• Ultra-Compact Micro Profile: Measuring just 12.5 mm × 12.5 mm, it is one of the slimmest picture hanging rails on the market for an almost invisible wall presence.
• Heavy-Duty 20 kg/m Support: Engineered from high-grade extruded aluminium to support framed prints, canvases, and mirrors up to 20 kg per metre safely.
• Instant Tool-Free Rearranging: Insert Twister wires into the bottom channel with a simple 90-degree turn—move artwork laterally or adjust heights without drilling new holes.
• Concealed Click&Connect Mounting: Snaps cleanly onto hidden wall brackets for a smooth, screw-free front profile.
• Custom Finish Options: Available in Brushed Grey, Matt Black, and Pure White (Paintable primer finish to match your exact wall colour).

Technical Specifications

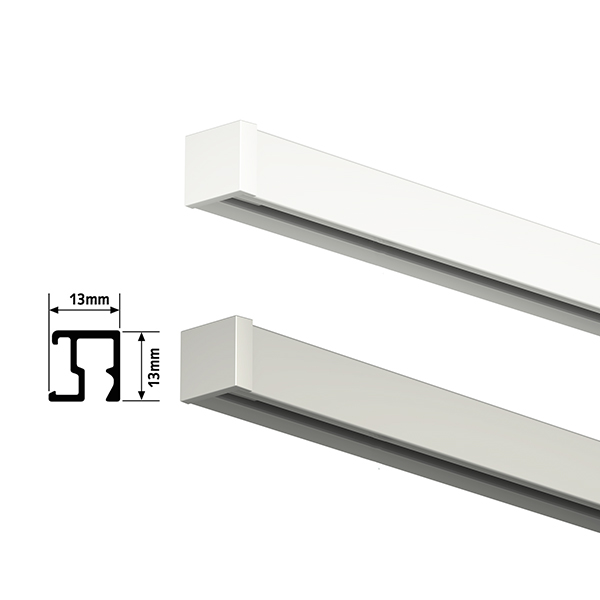

• Profile Dimensions: 12.5 mm (Depth) × 12.5 mm (Height) ultra-slim micro track.
• Track Lengths Available: 100 cm, 150 cm and 200 cm lengths (easily trimmed with a standard hacksaw).
• Rail Weight Capacity: Rated up to 20 kg per metre (44 lbs/m).
• Available Finishes: Brushed Grey, and Pure White (Paintable).
• Mounting Bracket Spacing: Requires 3 Click&Connect wall brackets per metre (~40 cm apart).
• Wire Compatibility: Compatible with 1 mm and 2 mm ARTITEQ Micro Grip and Twister hanging wires.

Architectural CAD Downloads

• Download 2D AutoCAD File (.DWG)
• Download 3D AutoCAD File (.DWG)

How to Install the Contour Rail

1. Measure Ceiling Distance: Mark a straight, level line along your wall. Ensure the top edge of the rail sits at least 15 mm below ceiling level to allow room for wire insertion.
2. Mount Wall Brackets: Drill 6 mm holes along your line spaced ~40 cm apart (3 brackets per metre), insert wall plugs, and secure the Click&Connect brackets using 3.5 mm screws.
3. Snap Track in Place: Push the end caps into the open track edges, align the Contour Rail over the wall brackets, and press firmly until the profile snaps securely into position.

What’s Included in the Box

• 1 × ARTITEQ Contour Rail Track (Select Length & Finish)
• 2 × Matching Colour End Caps
• 3 × Wall Brackets (per metre)
• 3 × Installation Screws (3.5 mm × 40 mm) (per metre)
• 3 × FISCHER DuoPower Wall Plugs (6 mm) (per metre)
