ARTITEQ Up Rail Ceiling Track 20 kg/m (44 lbs/m)

The ARTITEQ Up Rail is an elegantly curved, ceiling-mounted picture hanging system designed to fit seamlessly into the wall-ceiling junction. Supporting up to 20 kg per metre, this discreet ceiling track snaps onto concealed mounting clips for fast, tool-free rail installation—making it the ideal gallery solution for concrete or tiled walls where wall drilling is restricted, or where a minimalist ceiling aesthetic is required.

Why Choose the ARTITEQ Up Rail?

• Seamless Ceiling Integration: Featuring a soft, rounded architectural profile, the rail mounts flush against the ceiling line to blend naturally into modern interiors.
• Ideal for Restricted Walls: Mounts directly into concrete, plasterboard, or timber ceilings—eliminating the need to drill into delicate wall tiles, glass, or hard masonry.
• Tool-Free Wire Insertion: Twister perlon wires and steel cables insert into the track slot with a simple 90-degree turn—add, slide, or remove hanging cords at any point along the rail.
• Paintable Ceiling Match: The Pure White finish can be painted over to match your exact ceiling shade for a near-invisible, floating track appearance.
• Heavy-Duty 20 kg/m Load Support: Crafted from high-grade extruded aluminium to safely support medium-to-heavy art frames, gallery canvases, and mirrors.

Technical Specifications

• Mounting Location: Ceiling-mounted (attaches flush at the wall-ceiling line).
• Available Track Lengths: 150 cm and 200 cm lengths (easily cut to size with a hacksaw).
• Available Finishes: Pure White (paintable) and Matt Black.
• Weight Capacity: Rated up to 20 kg per metre (44 lbs/m).
• Mounting Bracket Spacing: Requires 3 concealed ceiling brackets per metre.
• Wire Compatibility: Compatible with all 2 mm ARTITEQ Twister perlon cords and stainless steel cables.
• Profile Dimensions: 14 mm (Width) × 22.5 mm (Height).

Simple Click-and-Connect Installation

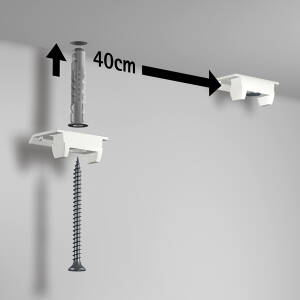

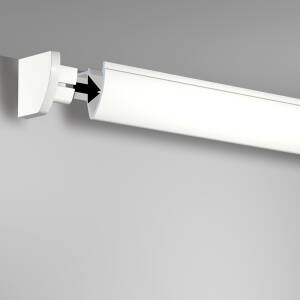

Begin by marking a straight line along your ceiling flush against the wall junction. Space the ceiling mounting brackets approximately 40 cm apart (3 brackets per metre), drill 6 mm holes, insert the wall plugs, and screw the brackets into place. Press the Up Rail profile against the brackets until it snaps firmly with a click, slide on the matching end caps, and insert your Twister hanging wires.

What’s Included in the Box

• 1 × ARTITEQ Up Rail Ceiling Track (Select Length & Finish)
• 2 × Matching Colour End Caps
• 6 × Concealed Ceiling Mounting Brackets (Sufficient for 150/200 cm Track)
• 6 × Heavy-Duty Installation Screws (3.5 mm × 40 mm)
• 6 × FISCHER DuoPower Wall Plugs (6 mm)
